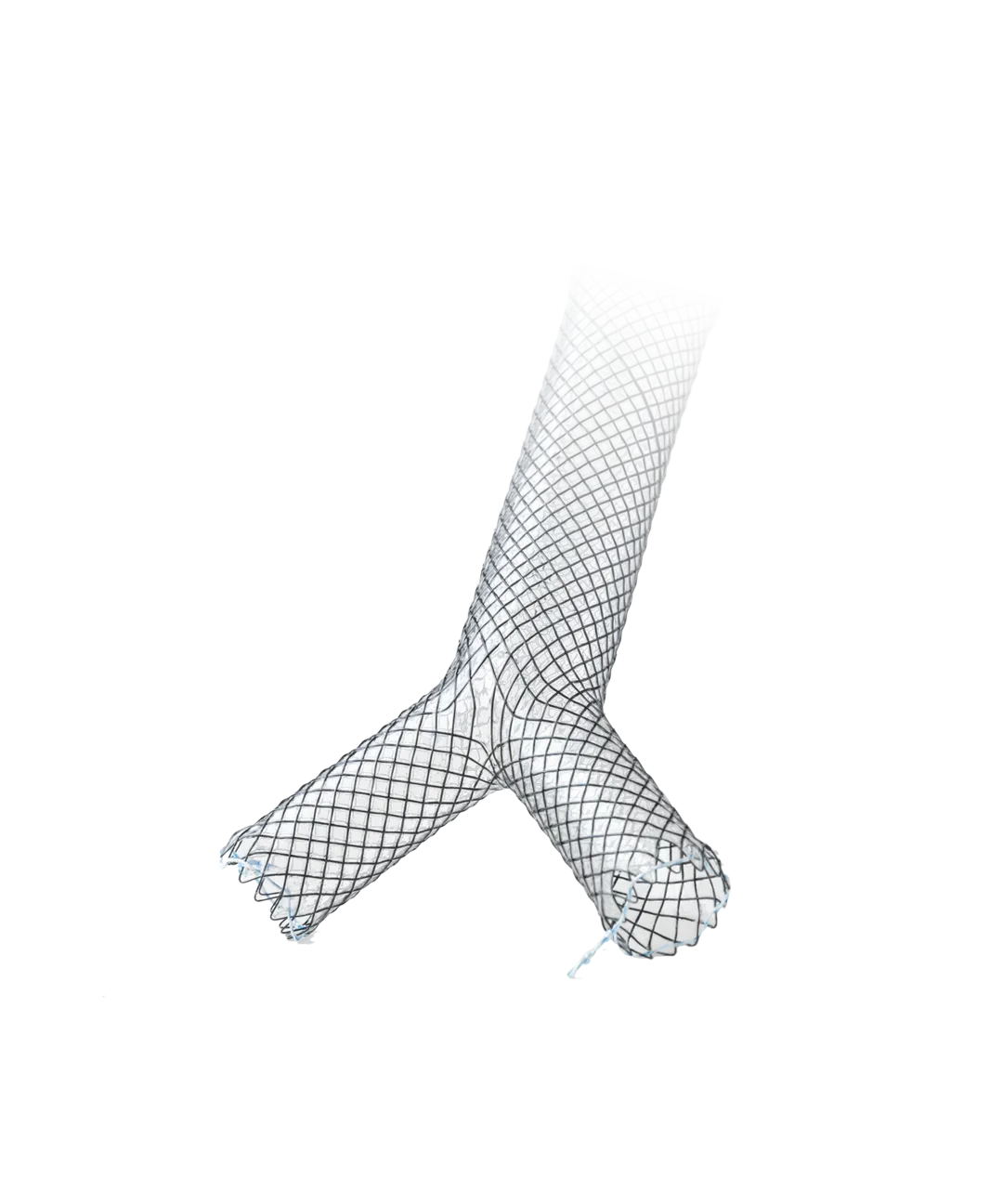

Y-Shape Tracheal Stents

MICRO-TECH is the world's ﬁrst company to present a self-expanding Y-stent for bypassing respiratory tract stenoses in the area around the carina. Its innovative design ensures a stable position and guarantees signiﬁcant treatment advances in the trachea and in both main bronchi.

KEY BENEFITS

Y-design
Self-expanding
Nitinol mesh with atraumatic ends
Excellent positional stability
High radial force
Resistant and elastic covering
High radiopacity
Compatible guide-wire up to 0.035 inches

CATALOG

SPECIFICATION

Y-Shape Tracheal Stents
REF	Stent		Delivery System
REF	Body O.D. (mm)	Expanded Length (mm)	Catheter O.D. (Fr/mm)	Working Length (mm)	Packaging	Repositionable
Y-Shape Tracheal Stents Non-Covered
ST02-961-18.050	18	50	24/8	600	1/Box	\
ST02-961-18.060	18	60	24/8	600	1/Box	\
Y-Shape Tracheal Stents Partially-Covered
ST02-962-18.050	18	50	24/8	600	1/Box	\
ST02-962-18.060	18	60	24/8	600	1/Box	\
Y-Shape Tracheal Sents Fully-Covered
ST02-964-18.050	18	50	24/8	600	1/Box	\
ST02-964-18.060	18	60	24/8	600	1/Box	\

Click to see the detailed Specifications
