Details of LOCKADO Clip

The new LOCKADOTM Clip from MICRO-TECH is designed to control bleeding more efficiently than ever. This is achieved via ten teeth that operte as anchoring spikes to ensure optimal fixation on the tissue of the bleeding area.


Users can immitate the clip’s actual closure while being able to reopen it at will. So it's repositionable and this ensures more precision and flexibility which in turn reduces the total operational time. We have also increased the compression pressure by 15%, which enables a significantly improved closing force. For maximum patient comfort, the clip segment projecting into the lumen was designed to be particularly short. This enables comfortable nutrition and minimizes the risk of injury to the opposing tract. MICRO-TECH offers the LOCKADO™ in ifferent options. For example you can choose between three clip widths (8, 11 and 16 mm) to cover all needs and possible applications.



KEY BENEFITS

  • Bleeding is better targeted and can be stopped quickly and specifically

  • Ten teeth for ideal hold

  • Clip arms with maximum contact pressure

  • Unlimited repositioning possible prior to fixation

  • High fixation due to better adaptation of tissue

  • Increased the clips’ compression pressure by 15%

  • Short clip segment for greater patient comfort




SPECIFICATION

LOCKADO™ Clip
REFClip Max. Span Width
(mm)
Working Length
(mm)
Instrument Ø (mm)Grip colorCoveringPackaging

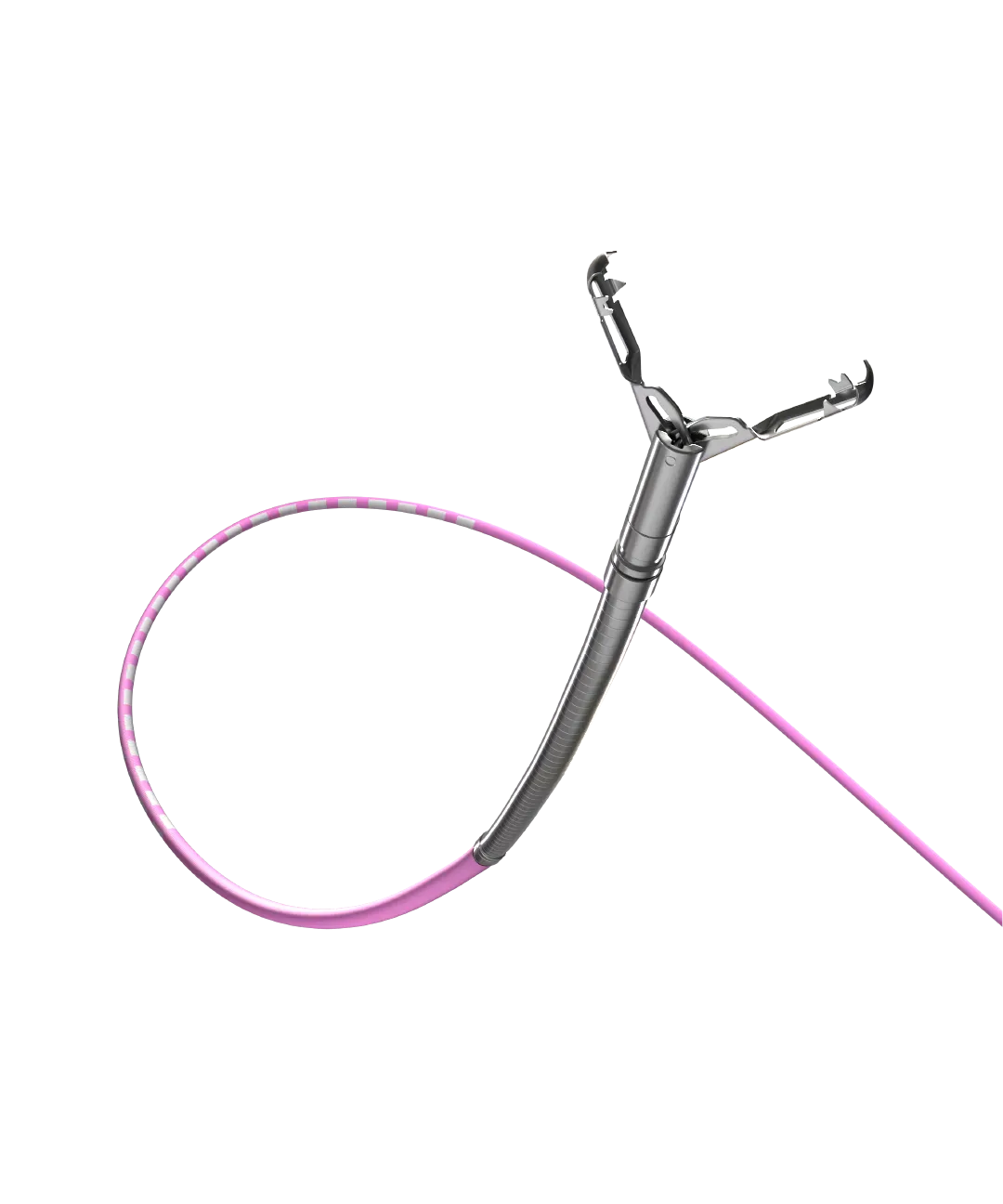

LOCK-C-26-195-C819502.6PinkPink10/Box
LOCK-C-26-230-C823002.6PinkPink10/Box

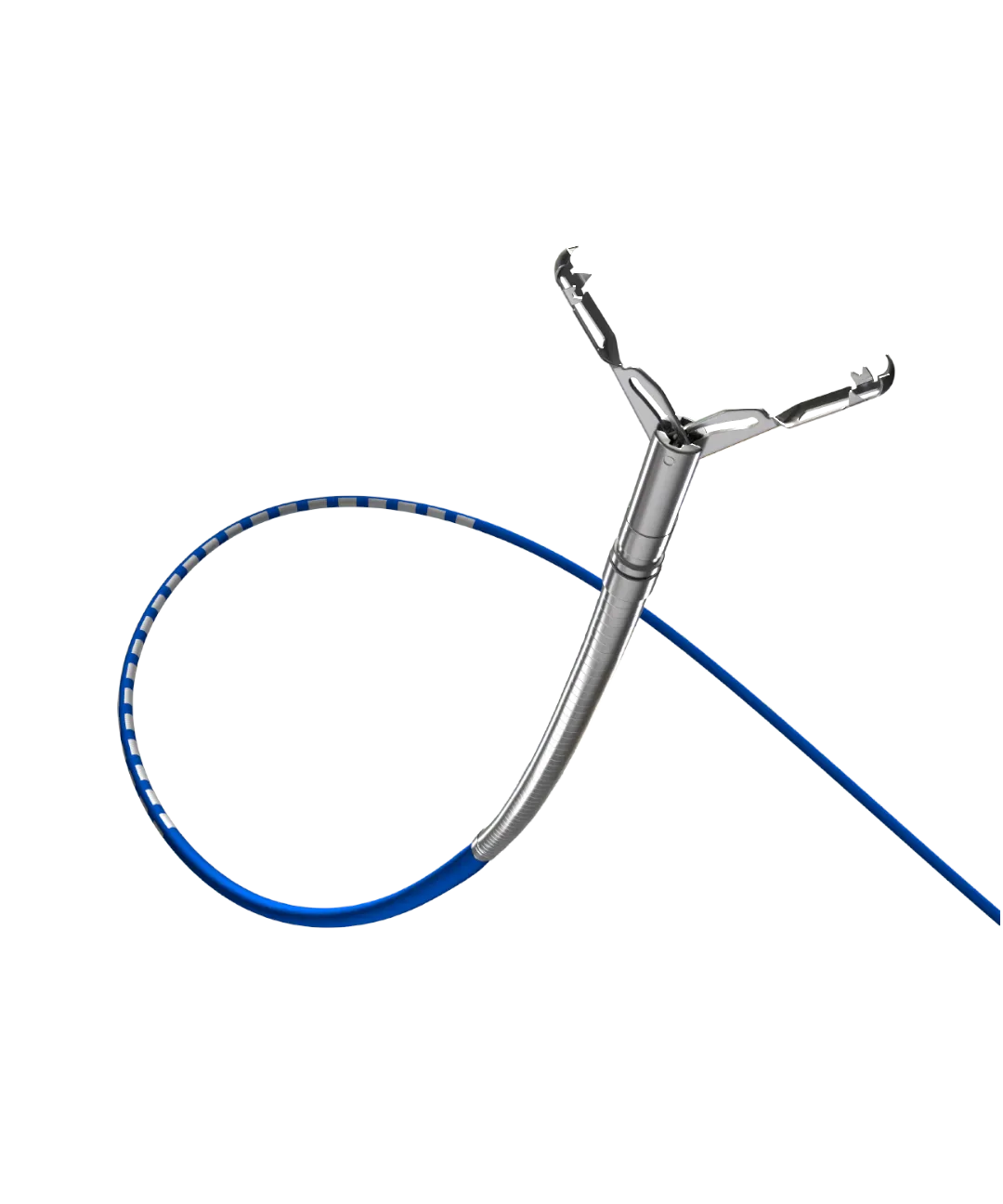

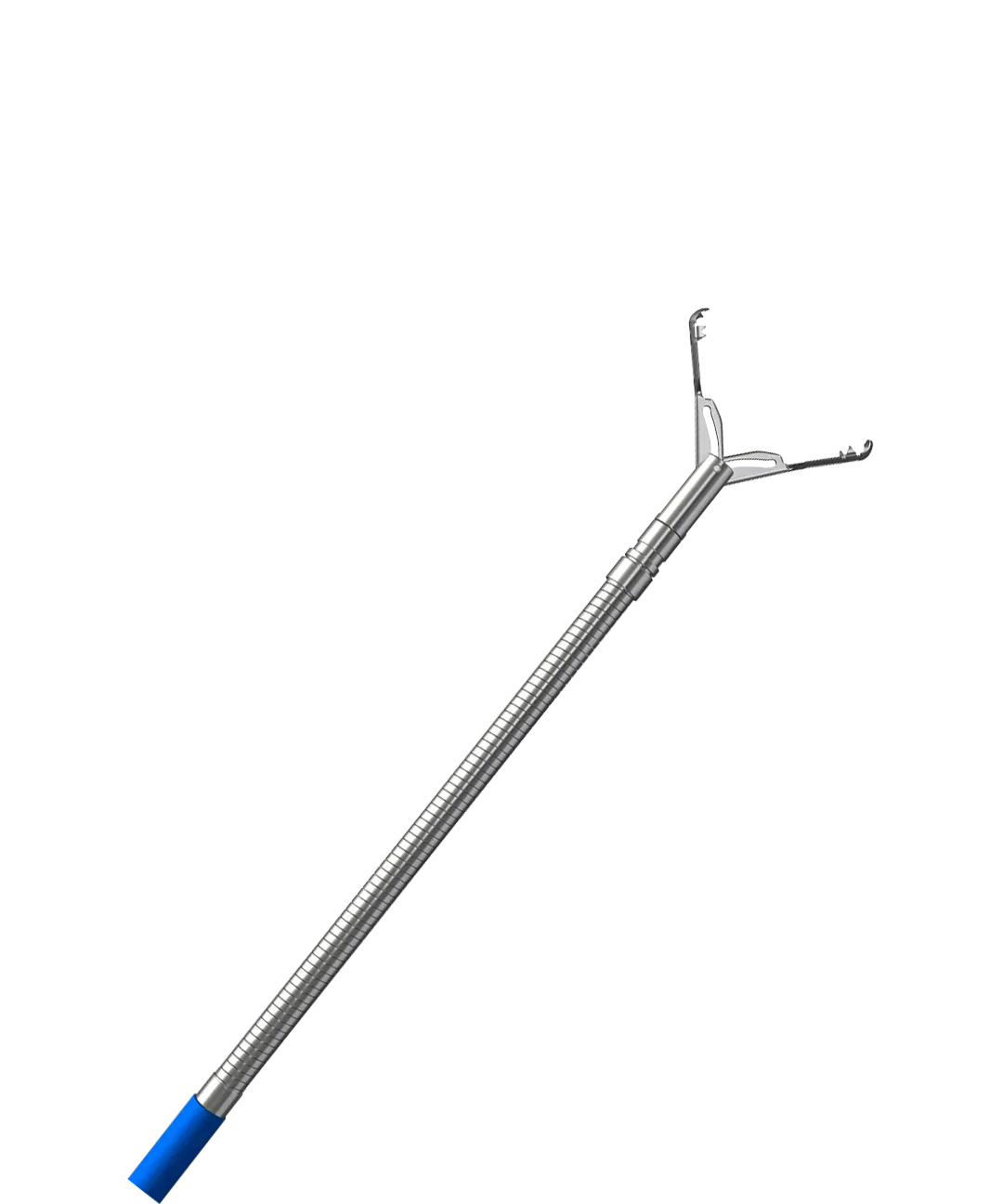

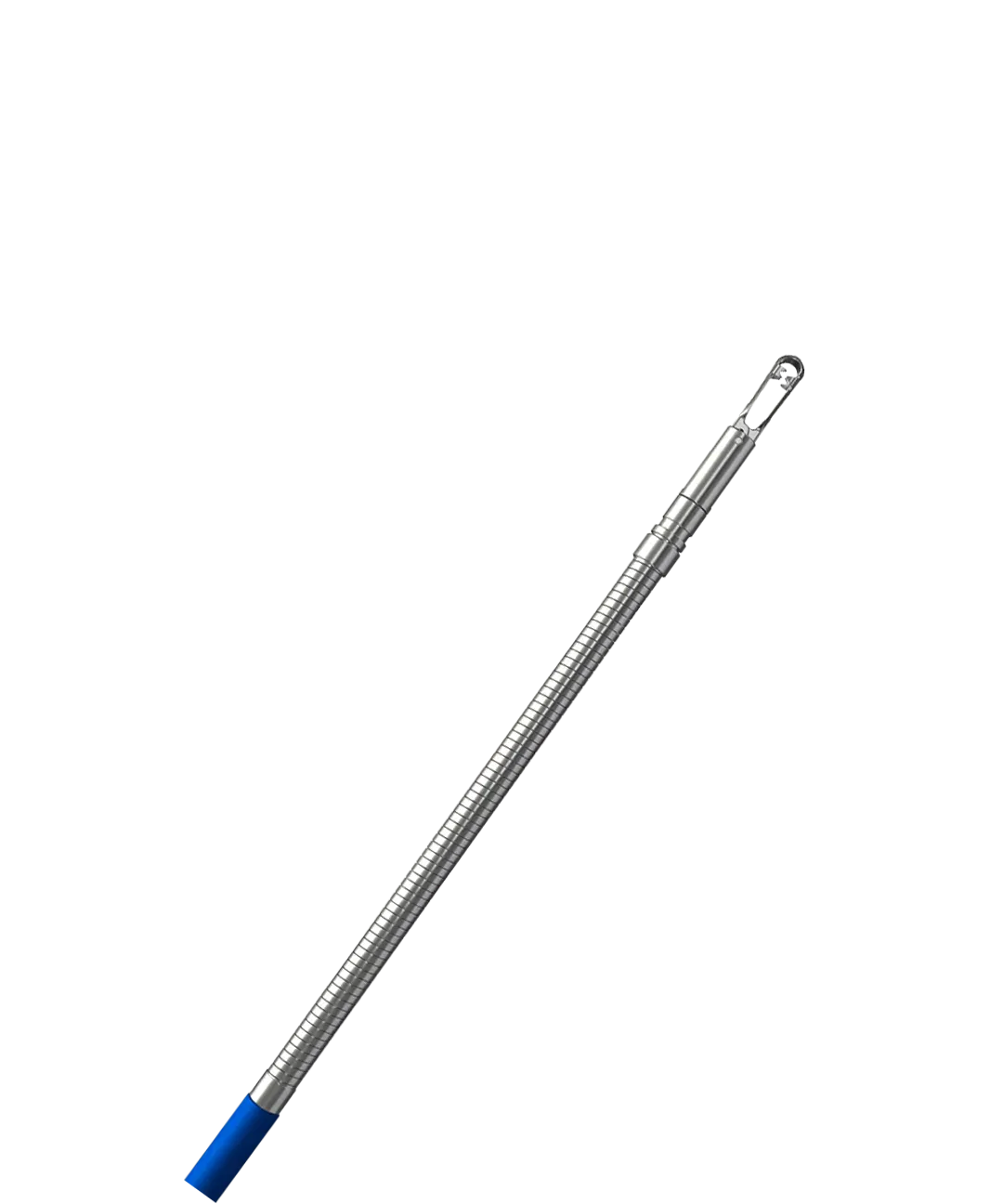

LOCK-D-26-195-C1119502.6BlueBlue10/Box
LOCK-D-26-230-C1123002.6BlueBlue10/Box

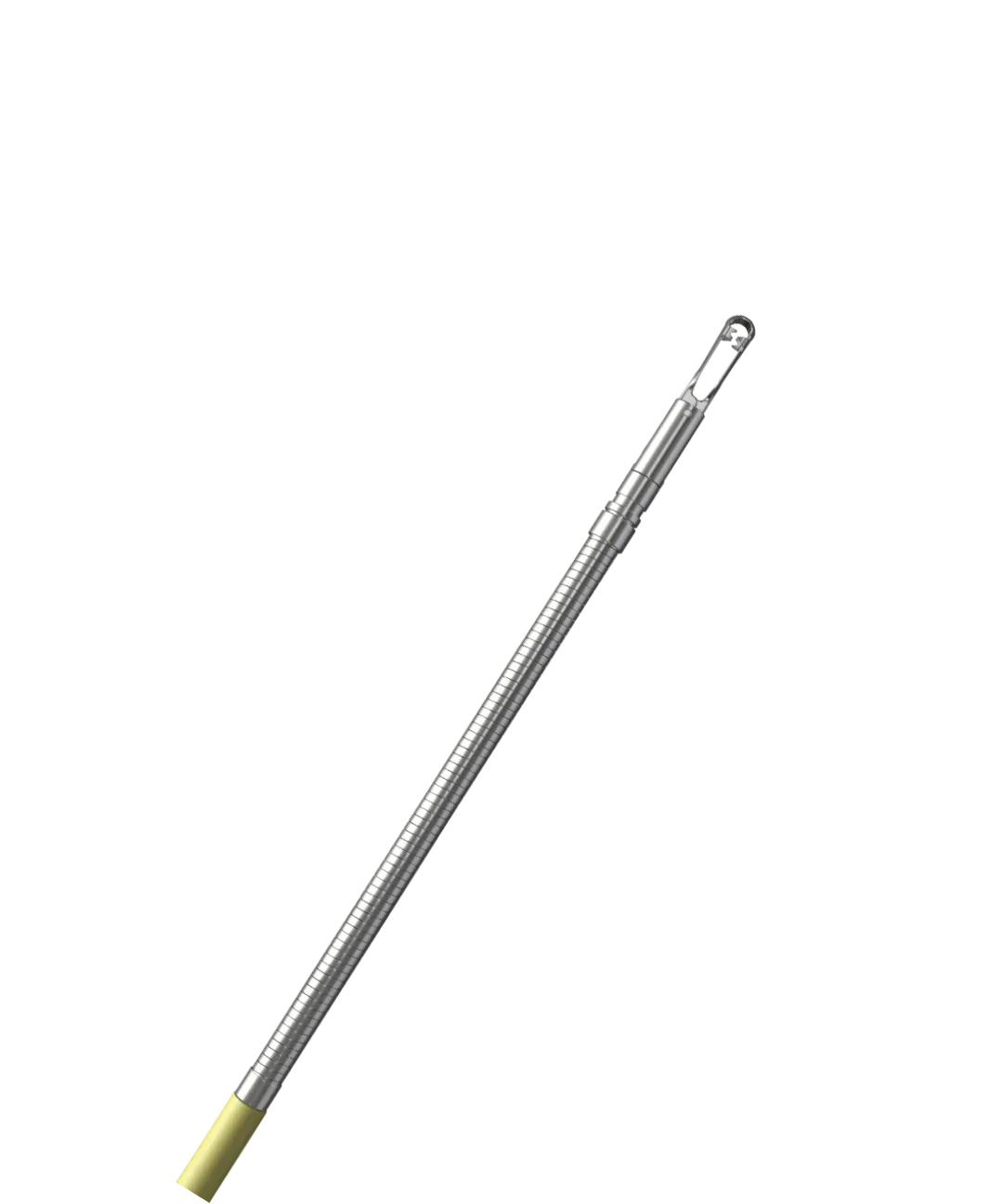

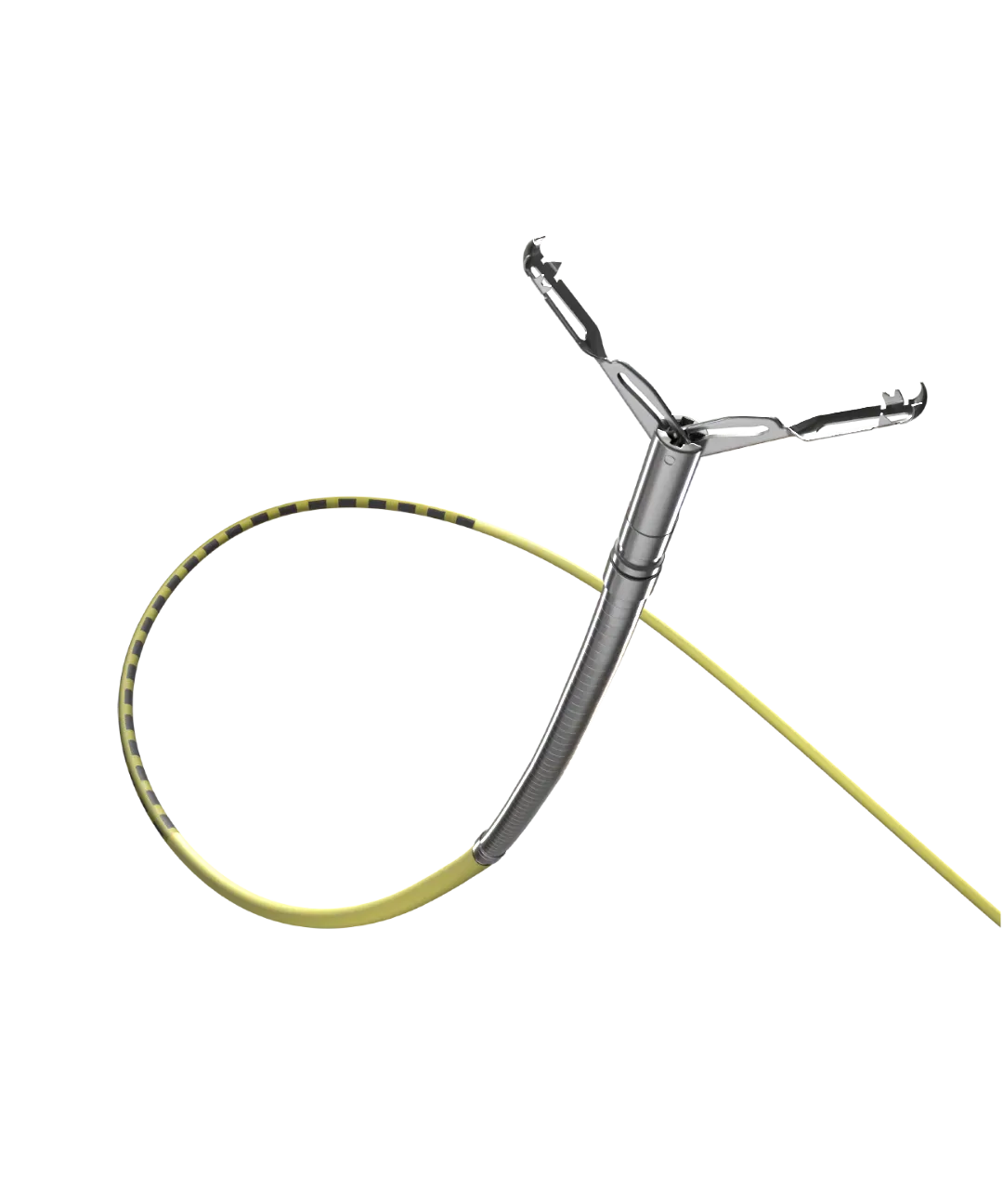

LOCK-F-26-195-C1619502.6YellowYellow10/Box
LOCK-F-26-230-C1623002.6YellowYellow10/Box


Click to see the detailed Specifications
