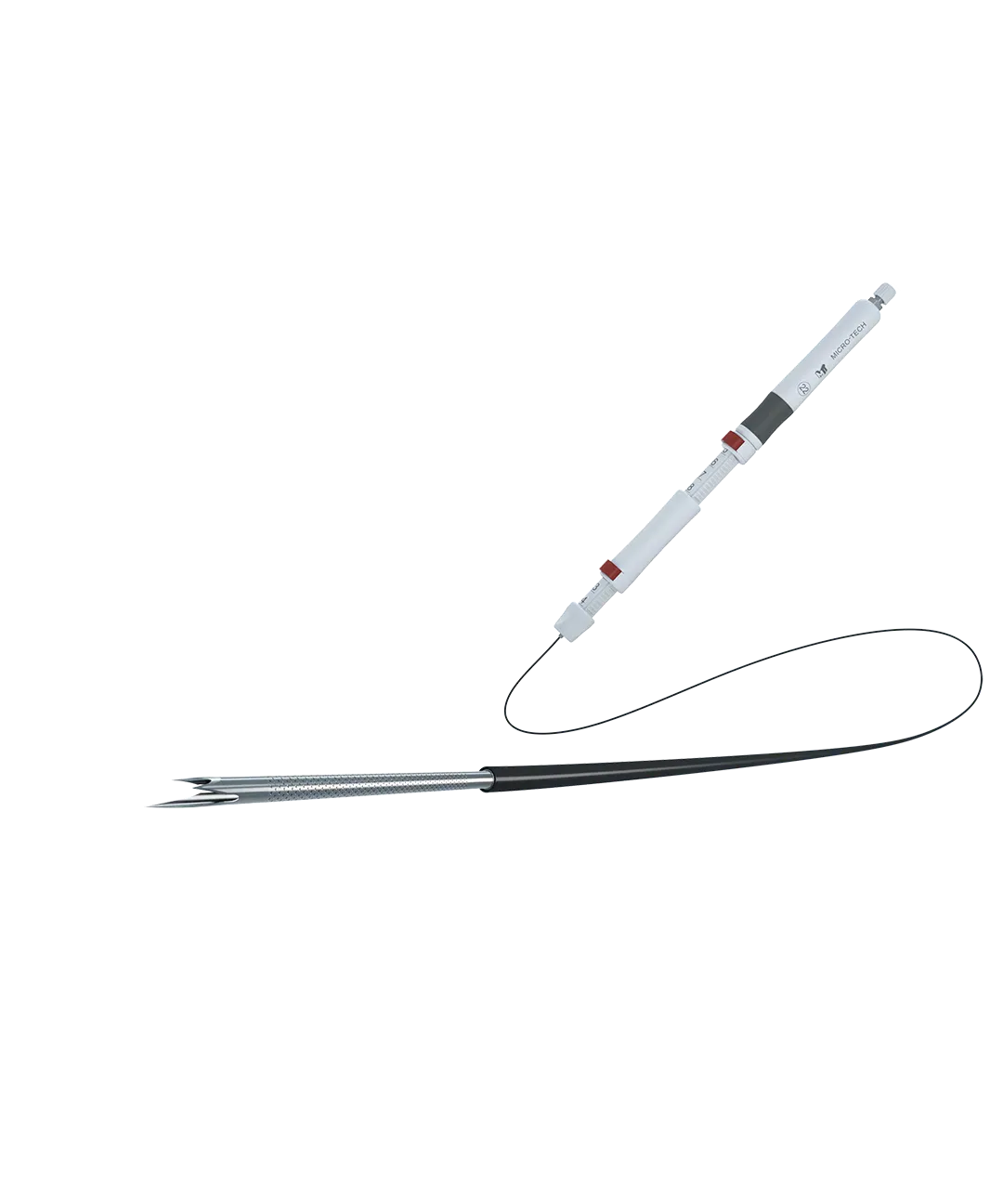

Trident™ EUS-FNB Needles
Trident™ EUS-FNB Needles
Trident™ EUS-FNB Needles
Trident™ EUS-FNB Needles
Trident™ EUS-FNB Needles

Trident™ EUS-FNB Needles

For histological tissue structures.



KEY BENEFITS

  • Designed for cases when FNA is non-diagnostic or inadequate and tissue architecture is needed.

  • Co-Cr alloy needle utilized for enhanced needle flexibility, durability and target accessibility.

  • Unique Trident™ multi-blade three-prong tip facilitates histological quality tissue sampling.

  • Innovative one-button adjusters for needle depth and sheath length provide easy and precise one-hand control.

  • V-notch laser-etched markings for enhanced needle echogenicity under ultrasound.

  • Smooth sheath ensures push ability in angulated EUS endoscope as well as protection for the working channel.

  • Compatible with the full range of EUS endoscopes.




SPECIFICATION

REFNeedle Ø(Gauge)Sheath Ø(mm)Maximum Needle Length (mm)Needle TypeChannel Size (mm)Working Length (mm)
EUS-FNB TridentTM Needle (Laser beam Treated)
EUS-25-1-N251,880Co-Cr-Legierung≥2,81.375~1.415
EUS-22-1-N221,880Co-Cr-Legierung≥2,81.375~1.415
EUS-19-1-N191,880Co-Cr-Legierung≥2,81.375~1.415


Click to see the detailed Specifications
